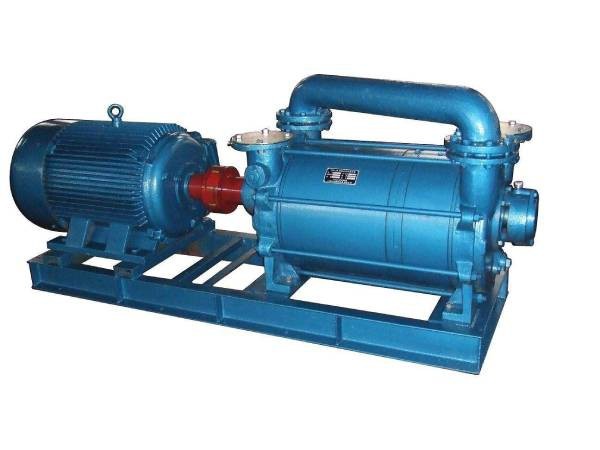

Structure diagram of water ring vacuum pump

The water ring vacuum pump is a common liquid ring vacuum pump,and its working principle and structure are relatively complex.The following are the steps to draw the structure diagram of water ring vacuum pump:
1.Detailed steps
When drawing the Structure diagram of water ring vacuum pump  of water ring vacuum pump,draw a rectangle or circle to represent the pump body and a slightly smaller rectangle or circle above the pump body to represent the pump cover.
2.Draw the impeller and shaft
Draw an eccentric circle inside the pump body to represent the impeller,and draw a straight line from the impeller to represent the shaft,extending to the outside of the pump body.
3.Draw the blades
Multiple blades are evenly distributed on the impeller,usually 12 or more.
4.Draw the water ring
Draw a closed water ring around the impeller,shaped like a circular ring of equal thickness.
5.Draw the intake and exhaust ports

Draw small circles on the pump cover to represent the inlet and outlet ports,and use arrows to indicate the direction of gas inlet and outlet.

6.Draw the stuffing box and bearings
Draw a small rectangle at the connection between the pump body and the shaft to represent the packing box,and draw two small circles at both ends of the shaft to represent the bearings.
7.Add details and labels
The structure diagram of water ring vacuum pump of the water ring vacuum pump indicates the names of various components,such as the pump body and pump cover parts structure.Different components can be distinguished by different colors or line thickness.
Due to its simple and compact structure diagram of water ring vacuum pump to handle corrosive gases,the water ring vacuum pump is widely used in the chemical industry.In addition,it can also be used as a blower.By following the steps of drawing the structure diagram of the water ring vacuum pump,the design and operating mechanism of the water ring vacuum pump can be better understood.
